Uea Litz wiliwili

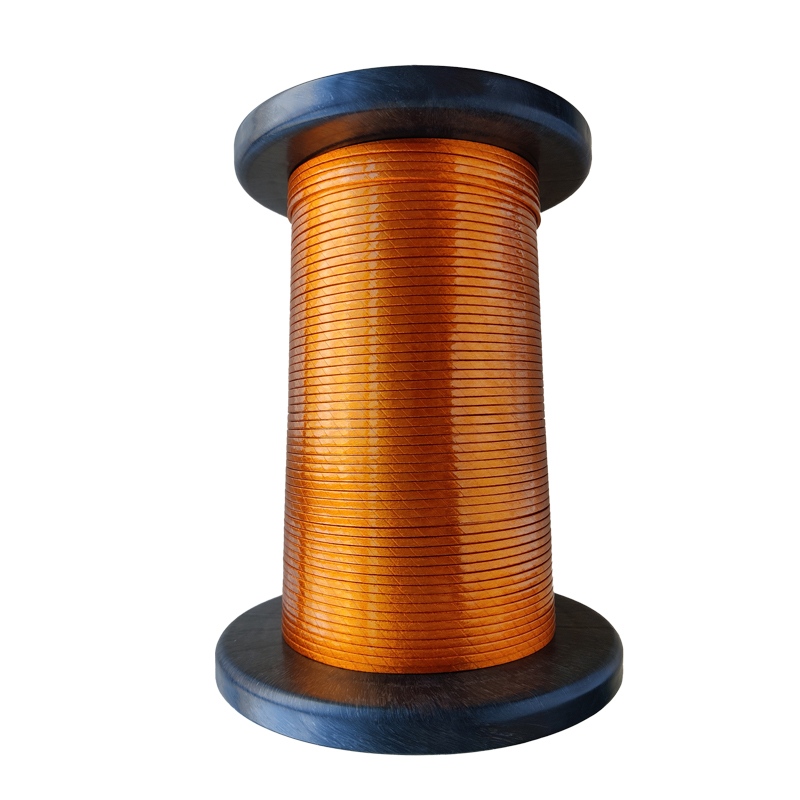

ʻO kā mākou Huaying Twisted Litz Wire he huahana ʻenehana maoli i hana ʻia e Huizhou Huaying Electronic Technology Co., Ltd. Ua hoʻohana nui ʻia ʻaʻole wale nō ma ka home akā ma ke ao holoʻokoʻa, loaʻa iā mākou kahi papa inoa lōʻihi o nā mea kūʻai kūpaʻa. No ke aha i kaulana ai? ʻO ka mea nui no ka hoʻokō piha ʻana o kā mākou uea i nā kūlana palekana UL a me VDE, a hiki i ka hoʻokō ʻana i nā koi ʻole halogen ROHS. Mai ke koho ʻana i nā mea waiwai a hiki i ka wili a me ka hana ʻana, e hana ʻia kēlā me kēia hana e like me nā kūlana ʻoihana koʻikoʻi. Hoʻokumu mākou i kā mākou mea kūʻai me ka mālama nui loa. Eia kekahi, paʻa mākou ma luna o ʻumi mau patent, e hōʻoiaʻiʻo ʻaʻohe pilikia o ka maikaʻi. He nui nā mea kūʻai kūpaʻa e ʻōlelo nei, "He mea hōʻoluʻolu ka hoʻohana ʻana i kā mākou uea." Paipai mākou iā ʻoe e hoʻāʻo; ʻAʻole hiki iā ʻoe ke hele hewa me mākou!

E hoʻouna i ka nīnau

Hōʻike huahana

Nā Kūlana Huahana

Hāʻawi kā mākou Huaying Twisted Litz Wire i kahi ākea o nā koho. ʻO ke anawaena maikaʻi loa he 0.10mm, hiki ke wili i nā kaula mai 50 a 2000 mau kaula. ʻO ke anawaena 0.05mm ʻoi aku ka lahilahi e hiki ai ke wili i nā kaula mai 50 a 3000 mau kaula. Ma waho o nā pono kiko'ī o ka mea kūʻai, hiki iā mākou ke hoʻokō i kēia mau koi. Hiki ke maʻalahi ke anawaena o waho o ka huahana, mai 0.1mm a 8mm. Inā loaʻa i nā mea kūʻai nā koi kūikawā no ka laulā a i ʻole ka mānoanoa, e like me ke koi ʻana i kahi anana lahilahi no ka hoʻokomo ʻana i nā mea lapaʻau liʻiliʻi, hiki iā mākou ke hoʻokō i kēia mau koi. Ua noiʻi maikaʻi mākou i ko mākou ikaika dielectric, e hōʻike ana ʻaʻole i hōʻike ʻia kā mākou huahana i ka haki ʻana o ka insulation ʻoiai ma nā wahi kiʻekiʻe a me nā kiʻekiʻe-voltage, e loaʻa iā lākou ka hilinaʻi o kā mākou mea kūʻai.

Nā Pono Pono Huahana

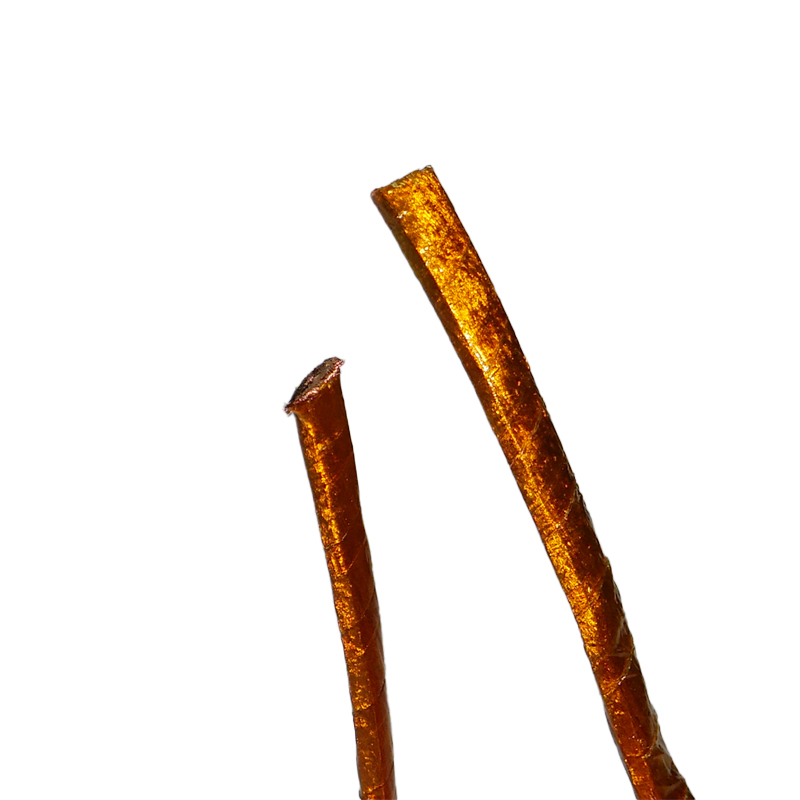

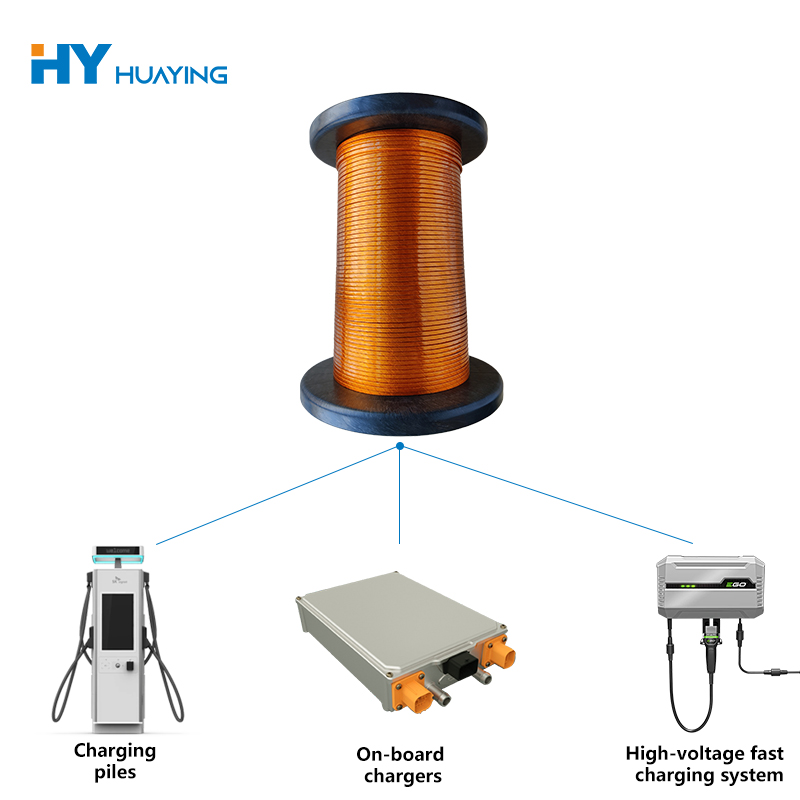

Hāʻawi kēia Huaying Twisted Litz Wire i kahi kiʻekiʻe o ka hoʻopiha piha piha ʻana, e ʻae ana i nā coils e ʻeha me ia e lawe i nā au kiʻekiʻe me ka wela ʻole, ʻoiai ma lalo o nā haʻahaʻa kiʻekiʻe. Eia kekahi, hoʻohana ʻo ia i ka uea stranded square. No ka ʻāpana keʻa like, ʻoi aku ka nui o ka ʻili o ka uea square ma mua o ka uea poepoe, e hoʻēmi ana i ka hopena o ka ʻili, e hōʻemi nui ana i nā poho o kēia manawa a me ka hoʻomaikaʻi ʻana i ka wela. Mālama kēia i nā mahana hana paʻa i nā ʻenehana uila automotive no nā manawa lōʻihi. Eia kekahi, ʻo ka footprint compact o kā mākou huahana e kūpono loa ia no nā noi e koi ana i ka liʻiliʻi liʻiliʻi, e like me ka mālama ʻana i ka optical. Eia kekahi, hiki i kona wela a me kona pale ʻana i ka radiation i 220 ° C, kūpono ia no ka hoʻohana ʻana i nā wahi ʻoihana kiʻekiʻe. Hoʻopaʻa pū kēia pale radiation i ka hana paʻa i nā mea lapaʻau kūikawā, ka hopena i kahi ākea o nā noi.

Maintenance Huahana

ʻO ka mālama pono ʻana i ka Huaying Twisted Litz Wire i kēlā me kēia lā; e hoʻolohe wale i kekahi mau kikoʻī liʻiliʻi. I ka wā e mālama ai, e hoʻomanaʻo i ka mālama ʻana i nā uea ma kahi maloʻo a maikaʻi ka makani mai ka ʻaila, lepo, a me nā wai ʻino. Inā hoʻolālā ʻoe e mālama iā lākou no ka manawa lōʻihi, pono ʻoe e ʻōwili paʻa i nā uea i loko o kahi ʻeke sila i pale ʻia ai ka makū mai ke komo ʻana. He ʻoiaʻiʻo loa kēia i ka wā ua ma ka ʻaoʻao hema o Kina, ke haʻahaʻa ka ea a hiki ke hōʻino maʻalahi i ka hana o ka uea. Inā pono ʻoe e ʻoki i nā uea, e hoʻohana pono i nā mea ʻoki uea i hoʻolaʻa ʻia. Mai hoʻohana i nā ʻoki maʻamau e ʻoki iā lākou. A i ʻole, e ʻoki maʻalahi nā kaula wili wili, e pilikia ai ke hoʻopili ʻana iā lākou ma hope. Eia kekahi, i ka wehe ʻana i ka insulation, e makaʻala ʻaʻole e uhaʻi i ke kaula keleawe. Manaʻo ʻia e hoʻohana i kahi mea hoʻokaʻawale uea i hoʻolaʻa ʻia a hahai i nā koi o nā mea hana; mai wehe a lōʻihi a pōkole paha.

nā kikoʻī	hoʻomanawanui conductor	mika kūʻē		FIW4 anawaena waho mm		FIW5 anawaena waho mm		FIW6 anawaena waho mm		FIW7 anawaena waho mm		FIW8 anawaena waho mm		FIW9 anawaena waho mm
mm	mm	min	max	min	max	min	max	min	max	min	max	min	max	min	max
0.050	±0.002	7.9220	9.4890	0.075	0.085	0.085	0.095	0.095	0.105	0.106	0.116	--	--	--	--
0.063	±0.002	5.0450	5.9220	0.090	0.101	0.102 0.114		0.114	0.126	0.127	0.139	--	--	--	--
0.070	±0.003	4.0790	4.8900	0.098	0.110	0.111	0.123	0.124	0.136	0.137	0.149	0.150	0.162	0.163	0.175
0.080	±0.003	3.1330	3.7030	0.109	0.122	0.123	0.136	0.137	0.150	0.151	0.164	0.165	0.178	0.179	0.192
0.090	±0.003	2.4950	2.9000	0.121	0.134	0.135	0.148	0.149	0.162	0.163	0.176	0.177	0.190	0.191	0.204
0.100	±0.003	2.0340	2.3330	0.133	0.148	0.149	0.164	0.165	0.180	0.181	0.196	0.197	0.212	0.213	0.228
0.112	±0.003	1.6330	1.8480	0.148	0.164	0.165	0.181	0.182	0.198	0.199	0.215	0.216	0.232	0.233	0.249
0.114	±0.003	1.5760	1.7820	0.150	0.166	0.167	0.183	0.184	0.200	0.201	0.217	0.218	0.234	0.235	0.251
0.120	±0.003	1.4260	1.6030	0.159	0.176	0.177	0.194	0.195	0.212	0.213	0.230	0.231	0.248	0.249	0.266
0.127	±0.003	1.2770	1.4280	0.166	0.183	0.184	0.201	0.202	0.219	0.220	0.237	0.238	0.255	0.256	0.273
0.132	±0.003	1.1850	1.3200	0.172	0.191	0.192	0.211	0.212	0.231	0.232	0.251	0.252	0.271	0.272	0.291
0.140	±0.003	1.0550	1.1700	0.182	0.201	0.202	0.221	0.222	0.241	0.242	0.261	0.262	0.281	0.282	0.301
0.150	±0.003	0.9287	1.0158	0.194	0.215	0.216	0.237	0.238	0.259	0.260	0.281	0.282	0.300	0.300	0.320
0.160	±0.003	0.8122	0.8906	0.206	0.227	0.228	0.249	0.250	0.271	0.272	0.293	0.294	0.315	0.316	0.337
0.170	±0.003	0.7210	0.7871	0.218	0.241	0.242	0.265	0.266	0.289	0.290	0.313	0.314	0.337	0.338	0.361
0.180	±0.003	0.6444	0.7007	0.230	0.253	0.254	0.277	0.282	0.303	0.304	0.325	0.326	0.349	0.350	0.373
0.190	±0.003	0.5793	0.6277	0.241	0.265	0.266	0.290	0.291	0.315	0.316	0.340	0.341	0.365	0.366	0.390
0.200	±0.003	0.5237	0.5657	0.253	0.277	0.278	0.302	0.303	0.327	0.328	0.352	0.353	0.377	0.378	0.402
0.220	±0.003	0.4342	0.4664	0.277	0.303	0.304	0.330	0.331	0.357	0.358	0.384	0.385	0.411	0.412	0.438
0.250	±0.004	0.3345	0.3628	0.313	0.338	0.340	0.370	0.373	0.400	0.403	0.430	0.433	0.460	0.463	0.490
0.300	±0.004	0.2319	0.2505	0.370	0.400	0.401	0.431	0.432	0.462	0.463	0.493	0.494	0.524	0.525	0.555
0.350	±0.004	0.1722	0.1833	0.424	0.454	0.455	0.485	0.486	0.516	0.517	0.547	0.548	0.578	0.579	0.609
0.400	±0.005	0.1316	0.1407	0.479	0.509	0.510	0.540	0.541	0.571	0.572	0.602	0.603	0.633	--	--
0.450	±0.005	0.1042	0.1109	0.534	0.564	0.565	0.595	0.596	0.626	0.627	0.657	0.658	0.688	--	--
0.500	±0.005	0.0846	0.0895	0.588	0.628	0.629	0.669	0.670	0.700	0.701	0.738	--	--	--	--
0.550	±0.006	0.0698	0.0742	0.650	0.690	0.690	0.730	0.730	0.768	0.768	0.802	--	--	--	--
0.600	±0.006	0.0587	0.0622	0.710	0.739	0.740	0.780	0.781	0.820	0.822	0.855	--	--	--	--
