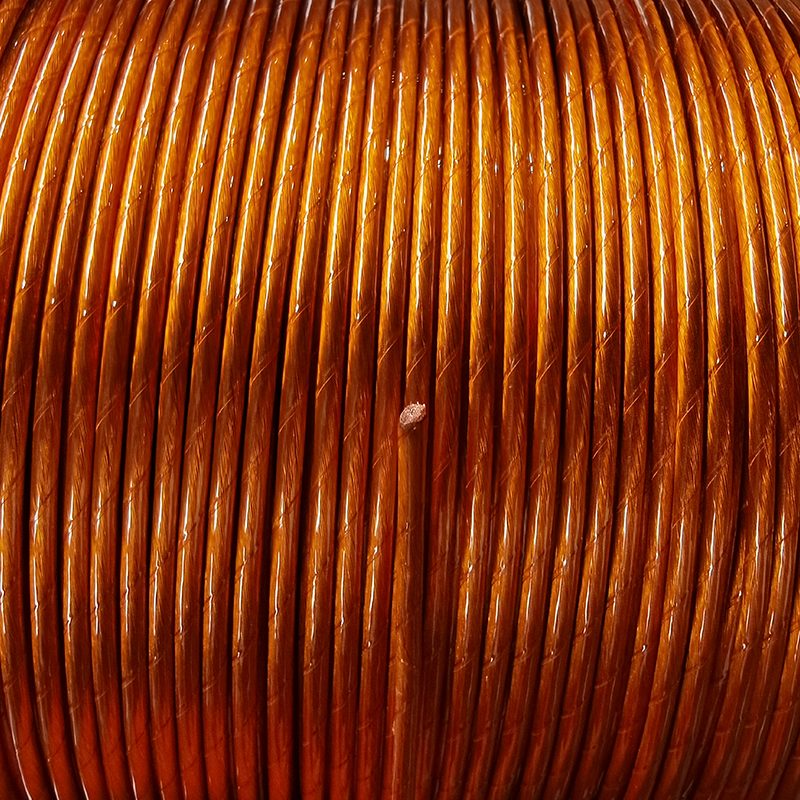

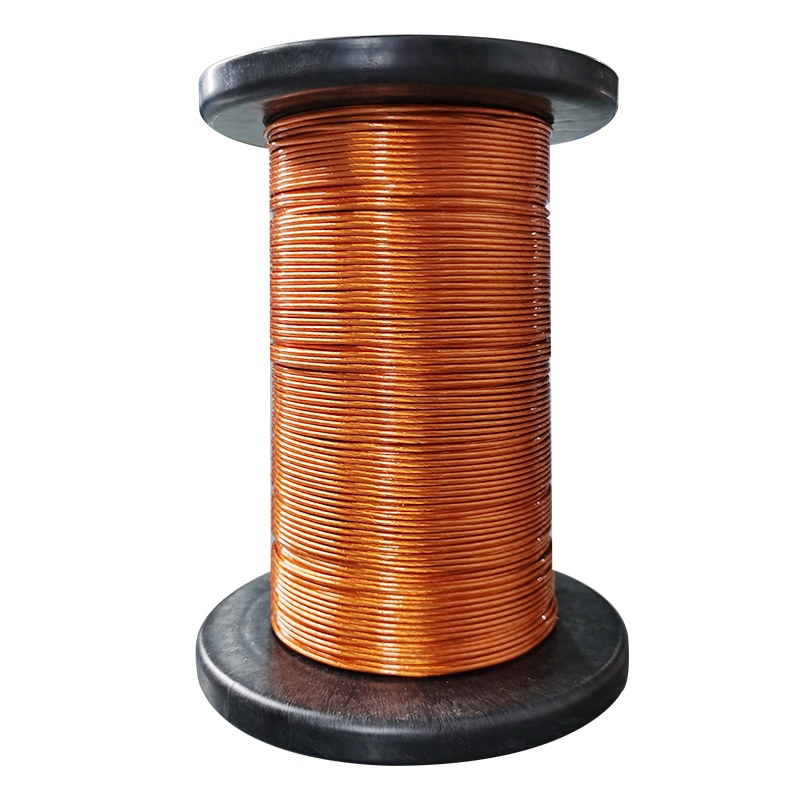

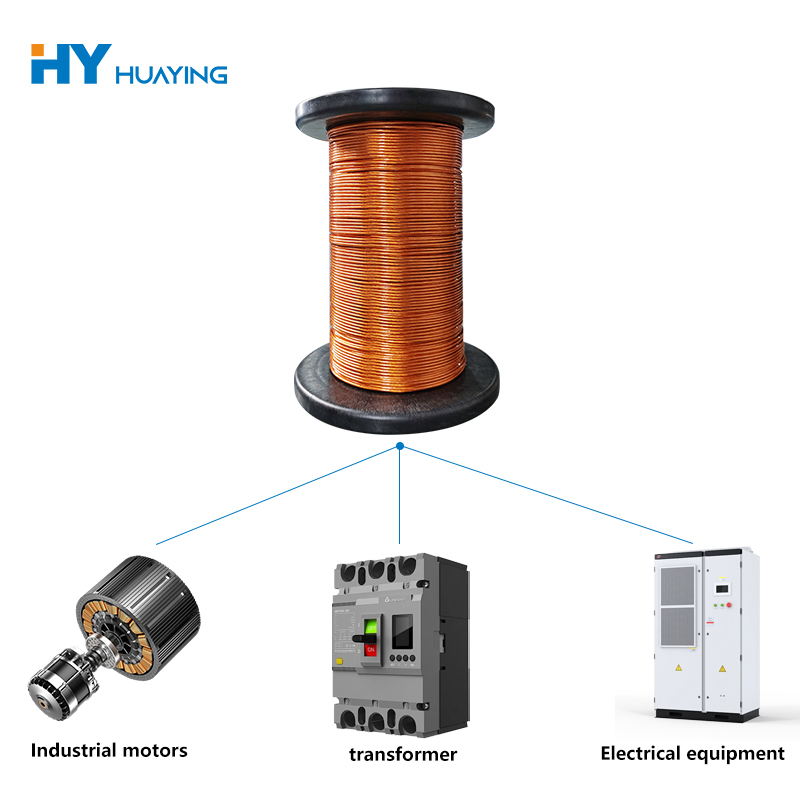

Uea i uhi ʻia i ka PTFE

Hana ʻia ʻo Huaying PTFE Tape-Wrapped Wire e Huizhou Huaying Electronic Technology Co., Ltd. He mau makahiki i hala aku nei, ua hoʻokumu kā mākou hui i kahi hui like me ka Shenzhen Research Institute o Huazhong University of Science and Technology, e hana pū ana i nā holomua ʻenehana. Nui nā kūlana ʻoihana hou i kēia manawa e hoʻokomo i nā hopena o kā lākou noiʻi hui a me ka hoʻomohala ʻana. ʻAʻole hoʻohālikelike ʻia kēia pae o ka ʻenehana loea e nā ʻoihana ʻē aʻe. Mahalo i kā mākou kūpaʻa i ka ʻenehana a me ka maikaʻi o ka huahana, ua huki ʻia nā mea kūʻai aku i kā mākou huahana. He aha kāu e kali nei? E hui pū me mākou i kēia lā!

E hoʻouna i ka nīnau

Hōʻike huahana

Kaʻina Hana Huahana

I ka wā e pili ana i ke kaʻina hana no Huaying PTFE Tape-Wrapped Wire, ʻo kā mākou laina hana ʻoi loa ka mokuʻāina. No ka laʻana, hiki i kā mākou CT280/CT285 paʻa ponoʻī ke mālama i nā anawaena uea mai 0.25mm a 1.0mm me nā wikiwiki hana kiʻekiʻe. ʻOiai no nā uea liʻiliʻi e like me 0.10mm, hiki iā mākou ke hana iā lākou ma kahi kiʻekiʻe a paʻa. Hoʻohana like ia i nā uea Mylar tape-wrapped wela a me ka wela wela, e hāʻawi ana i ke anawaena uea like a me ka wikiwiki hana. Hoʻoponopono pololei ʻia kēlā me kēia uea, e hoʻopau ana i nā ʻano like ʻole o ka wikiwiki a i ʻole ke anawaena.

Kū'ē Kūlana Kiʻekiʻe

He alakaʻi maoli ʻo Huaying PTFE Tape-Wrapped Wire i ke kūpaʻa wela kiʻekiʻe. ʻOiai ke ʻike ʻia i nā wela kiʻekiʻe no nā manawa lōʻihi, ʻaʻole i hoʻopilikia ʻia kāna hana. ʻO kona ʻoʻoleʻa ʻokoʻa ka mea e pale ai i ka ʻāʻī liʻiliʻi a i ʻole ke kaomi ʻana. Eia kekahi, pili maʻalahi ia, e hōʻoia ana i kahi paʻa paʻa i ka wā o ka hui ʻana me ka ʻole o ka hoʻopili nui ʻana. ʻO ke koʻikoʻi, ʻoi aku ka kiʻekiʻe o kona ikaika dielectric ma mua o ka uea insulated mea hoʻokahi, e hōʻoia ana i ka palekana uila.

Nā lawelawe huahana maʻamau

Hāʻawi mākou i ka Huaying PTFE Tape-Wrapped Wire maʻamau no nā koi mea kūʻai aku. No ka laʻana, makemake paha nā mea kūʻai aku i kahi pale kala kikoʻī e hoʻokaʻawale i nā uea me nā hana like ʻole, a i ʻole lākou e koi i nā uea me kahi anawaena kikoʻī a i ʻole mea insulation e hoʻokō i ke kaiapuni hana kūikawā o kā lākou lako. I ka manawa a ka mea kūʻai e hoʻopuka ai i nā koi kikoʻī, e hoʻolālā ka hui R&D i nā hoʻonā e pili ana i nā pono a hana i nā huahana maʻamau e kūpono i ka manaʻo o ka mea kūʻai.

Ke alakaʻi (mm)		anawaena holoʻokoʻa (mm)			lipine laula (mm)	Kaulana uku	Hoʻopili ʻia lōʻihi (M/axis)	Mea alakaʻi kūʻē (20 ℃) (Ω/km)	Kuʻi keleawe pā i pale aku uila uila AC/KV
Mea alakaʻi anawaena	ʻAe ʻia hoʻomanawanui	palena iki waiwai	pahu hopu waiwai	Ka nui	lipine laula (mm)	Kaulana uku	Hoʻopili ʻia lōʻihi (M/axis)	Mea alakaʻi kūʻē (20 ℃) (Ω/km)	Kuʻi keleawe pā i pale aku uila uila AC/KV
0.10×30	±0.008	0.704	0.804	0.904	6±0.2	≥110%	2000	≤86.7	4
0.10×40	±0.008	0.807	0.907	1.007	6±0.2	≥110%	1000	≤65	4
0.10×50	±0.008	0.898	0.998	1.098	7±0.2	≥110%	1000	≤52.0	4
0.10×60	±0.008	0.98	1.08	1.18	7±0.2	≥110%	1000	≤43.3	4
0.10×70	±0.008	1.055	1.155	1.255	8±0.2	≥110%	1000	≤37.1	4
0.10×80	±0.008	1.13	1.23	1.33	8±0.2	≥110%	1000	≤32.5	4
0.10×90	±0.008	1.19	1.29	1.39	8±0.2	≥110%	800	≤28.9	4
0.10X100P	±0.008	1.253	1.353	1.453	8±0.2	≥110%	800	≤26.0	4
0.10X110P	±0.008	1.312	1.412	1.512	8±0.2	≥110%	800	≤23.638	4
0.10X120P	±0.008	1.369	1.469	1.569	8±0.2	≥110%	800	≤21.668	4
0.10X130P	±0.008	1.423	1.523	1.623	9±0.2	≥110%	800	≤20	4
0.10X140P	±0.008	1.475	1.575	1.675	9±0.2	≥110%	800	≤18.573	4
0.10X150P	±0.008	1.525	1.625	1.725	9±0.2	≥110%	800	≤17.335	4
