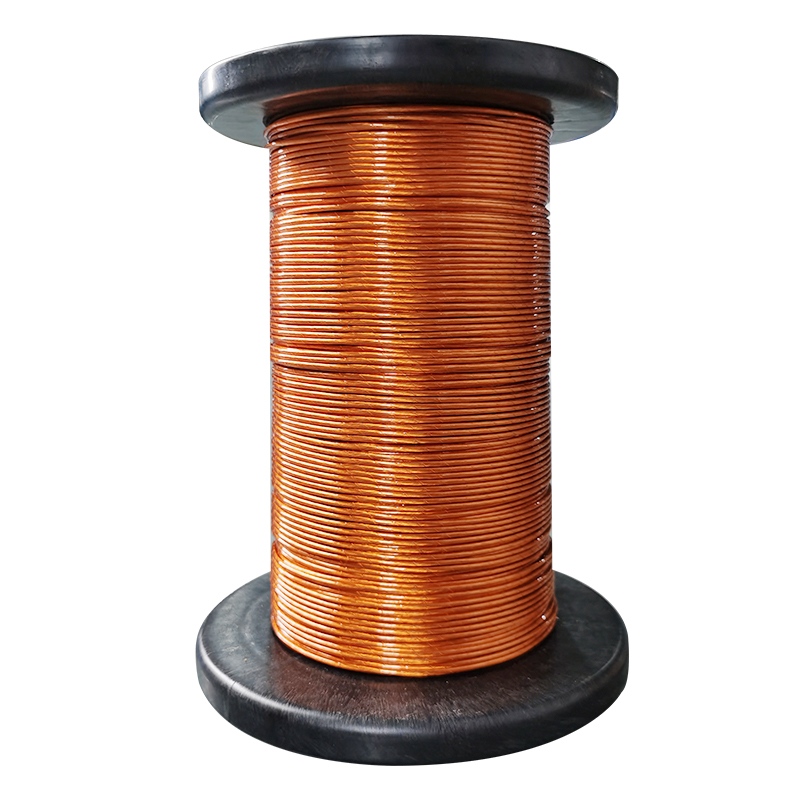

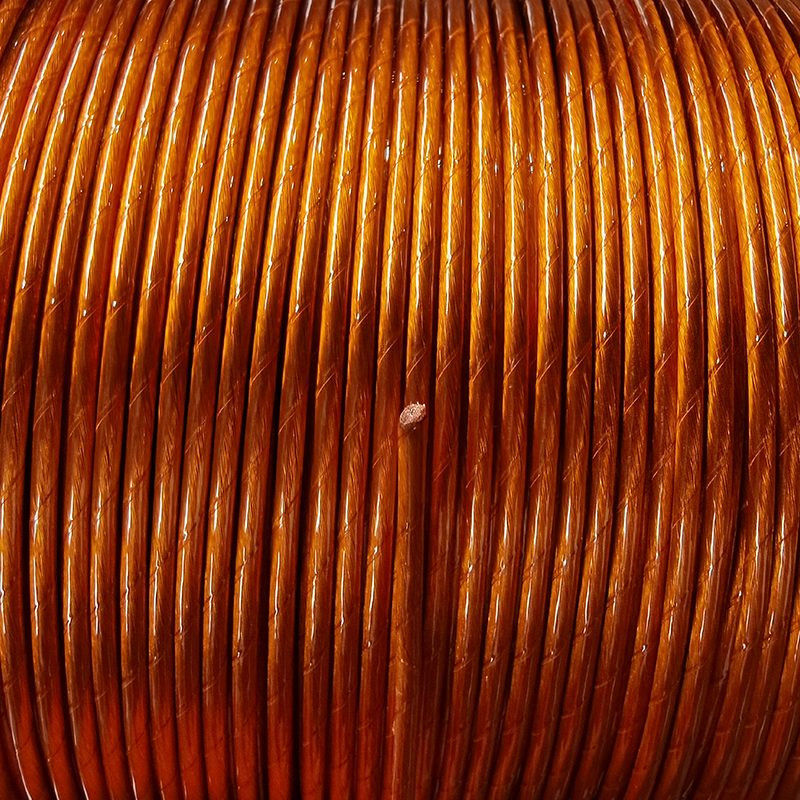

Uea i uhi ʻia i ka lipine

Hoʻolako ʻia ʻo Huaying Tape-Wrapped Wire e Huizhou Huaying Electronic Technology Co., Ltd. I loko o nā makahiki, ʻaʻole lākou i hoʻokō wale i nā kūlana o ka honua e like me UL a me VDE i loko o kā lākou ʻoihana ponoʻī, akā ua hana pū me ka Shenzhen Research Institute o Huazhong University of Science and Technology, me ka hoʻomohala ʻana i nā patent ʻenehana he nui. Hōʻike kēia i kā lākou kūpaʻa i ka ʻenehana huahana. Ua loaʻa iā lākou kahi inoa ikaika a me ka hilinaʻi o nā mea kūʻai aku he nui.

E hoʻouna i ka nīnau

Hōʻike huahana

ʻO ka ikaika hoʻopili huahana

ʻO ka Insulation ke kumu o ka uea insulated, a ʻo Huaying Tape-Wrapped Wire e hana i ka hoʻāʻo ikaika kiʻekiʻe. Hoʻopili lākou i nā volta ma mua o nā mea maʻamau i hoʻohana ʻia i kēlā me kēia lā e nānā i ka leakage. Hōʻike nā hopena ma lalo o nā kūlana kiʻekiʻe-voltage, mālama ka uea i ka hana insulation maikaʻi loa a ʻaʻole hōʻike i ka leakage, kahi hiʻohiʻona palekana koʻikoʻi no nā mea lapaʻau a me nā mea hoʻololi mana kiʻekiʻe.

Nā Kūlana Nānā Huahana

No ka hōʻoia ʻana i kēlā me kēia ʻōwili o Huaying Tape-Wrapped Wire i kūpono i nā maʻamau, mālama mākou i kahi protocol nānā koʻikoʻi. No ka laʻana, nānā pono ʻia ka hiʻohiʻona no nā ʻōpala a me nā stains, ka maʻalahi o ka ʻili, ka ʻālohilohi, a me ke ʻano like ʻole o ka waihoʻoluʻu, a me nā pipili. ʻO ke kala ka mea kūʻai aku i ʻōlelo ʻia, a ʻo ka spool ke nānā ʻia no ka pololei. Hoʻopili pono ʻia kēlā me kēia kikoʻī e hōʻoia i ka hiki ʻole o nā huahana kīnā ʻole i nā mea kūʻai aku.

Mahope o ke kuai ana

Hāʻawi ʻo Huaying Tape-Wrapped Wire i ka lawelawe ma hope o ke kūʻai aku. Hāʻawi ka hui i kahi hōʻoia maikaʻi i nā mea hana a me ka hana o ka huahana. Inā kū mai kekahi pilikia maikaʻi i ka wā o ka hoʻohana ʻana, e hōʻike wale iā lākou i ka hui ma hope o ke kūʻai aku, nāna e pane koke, hoʻopaʻa i ka pilikia, a hoʻoholo me ka ʻole o ka kali a i ʻole ka pale ʻana. ʻOiai ma hope o ka manawa hōʻoia, inā pilikia nā mea kūʻai aku, hiki iā lākou ke hoʻokaʻaʻike iā lākou a e hana lākou i ka mea maikaʻi loa e hāʻawi i ke kōkua, e hōʻoia i ka maluhia o ka noʻonoʻo.

Ke alakaʻi (mm)		anawaena holoʻokoʻa (mm)			lipine laula (mm)	Kaulana uku	Hoʻopili ʻia lōʻihi (M/axis)	Mea alakaʻi kūʻē (20 ℃) (Ω/km)	Kuʻi keleawe pā i pale aku uila uila AC/KV
Mea alakaʻi anawaena	ʻAe ʻia hoʻomanawanui	palena iki waiwai	pahu hopu waiwai	Ka nui	lipine laula (mm)	Kaulana uku	Hoʻopili ʻia lōʻihi (M/axis)	Mea alakaʻi kūʻē (20 ℃) (Ω/km)	Kuʻi keleawe pā i pale aku uila uila AC/KV
0.10×30	±0.008	0.704	0.804	0.904	6±0.2	≥110%	2000	≤86.7	4
0.10×40	±0.008	0.807	0.907	1.007	6±0.2	≥110%	1000	≤65	4
0.10×50	±0.008	0.898	0.998	1.098	7±0.2	≥110%	1000	≤52.0	4
0.10×60	±0.008	0.98	1.08	1.18	7±0.2	≥110%	1000	≤43.3	4
0.10×70	±0.008	1.055	1.155	1.255	8±0.2	≥110%	1000	≤37.1	4
0.10×80	±0.008	1.13	1.23	1.33	8±0.2	≥110%	1000	≤32.5	4
0.10×90	±0.008	1.19	1.29	1.39	8±0.2	≥110%	800	≤28.9	4
0.10X100P	±0.008	1.253	1.353	1.453	8±0.2	≥110%	800	≤26.0	4
0.10X110P	±0.008	1.312	1.412	1.512	8±0.2	≥110%	800	≤23.638	4
0.10X120P	±0.008	1.369	1.469	1.569	8±0.2	≥110%	800	≤21.668	4
0.10X130P	±0.008	1.423	1.523	1.623	9±0.2	≥110%	800	≤20	4
0.10X140P	±0.008	1.475	1.575	1.675	9±0.2	≥110%	800	≤18.573	4
0.10X150P	±0.008	1.525	1.625	1.725	9±0.2	≥110%	800	≤17.335	4
